Imbarcazioni Militari

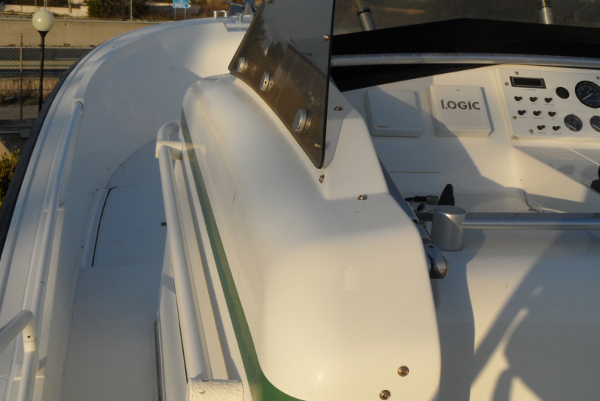

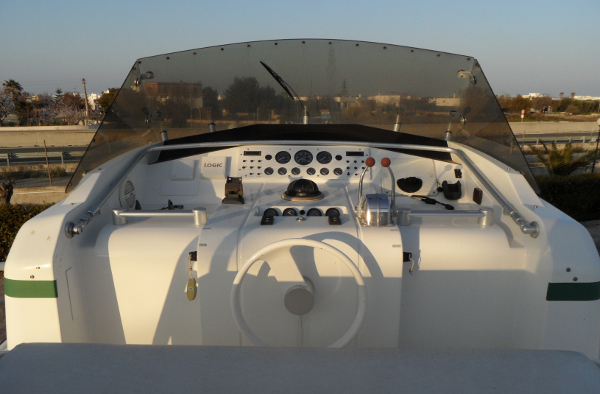

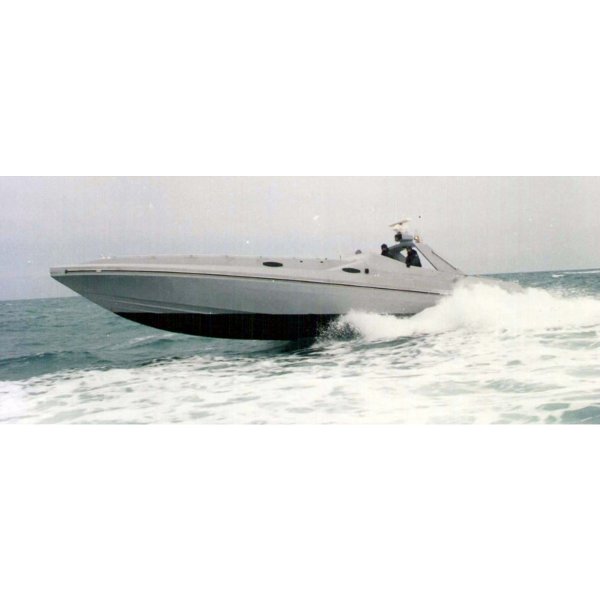

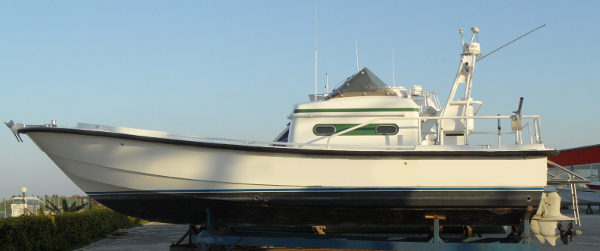

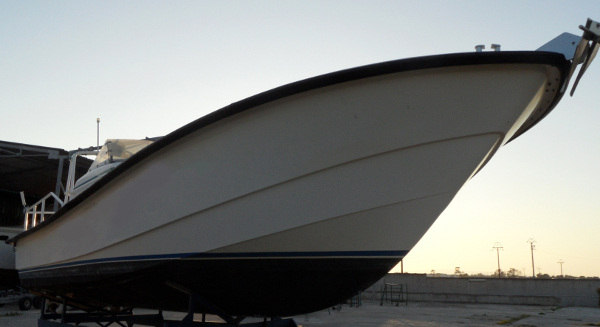

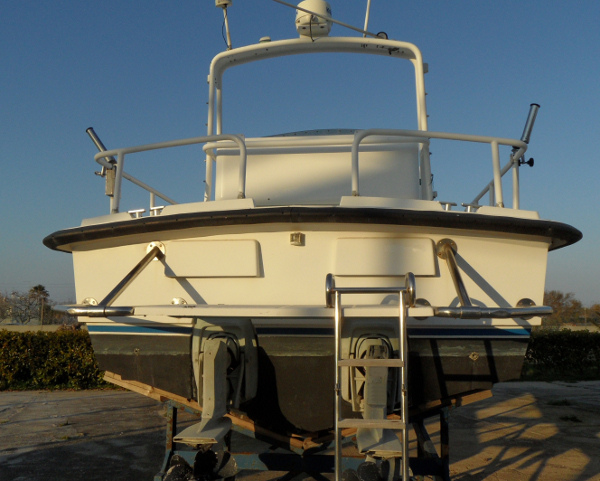

Adrenalina 33”

Osservazioni: L’intero progetto sarà eseguito in Sanwich con la tecnologia del vuoto in composito avanzato in fibra di vetro .

Lung. f.t. mt. 9,99   Largh. f.t. mt. 3,24   Immers. max mt. 0,90
Lungh. galleg. mt. 9,00 people   Largh. galleg. mt. 2,95   V di poppa 22°
Acqua dolce lt. 230   Auton. a 35 nodi miglia 300   Dislocamento kg. 4,500
Riduttore Volvo   Motorizzazione 2 x 200 Hp   Trasmissioni Entrofuoribordo
Carburante lt.700   Vel. max carico 29 nodi   Vel. max 35 nodi
Progetto Cantiere

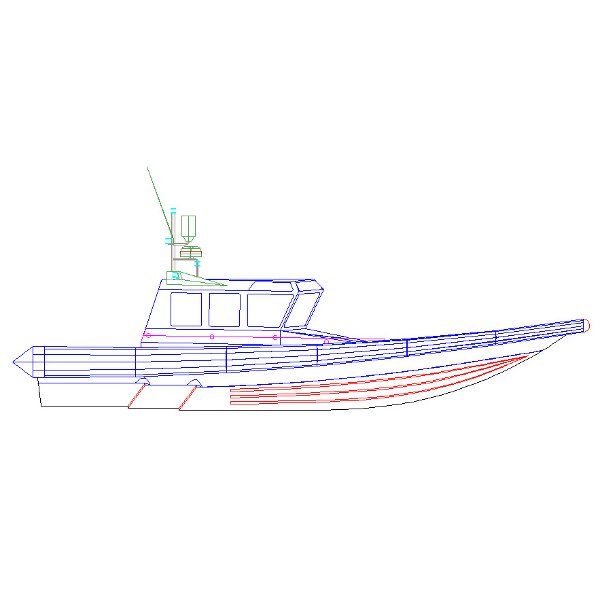

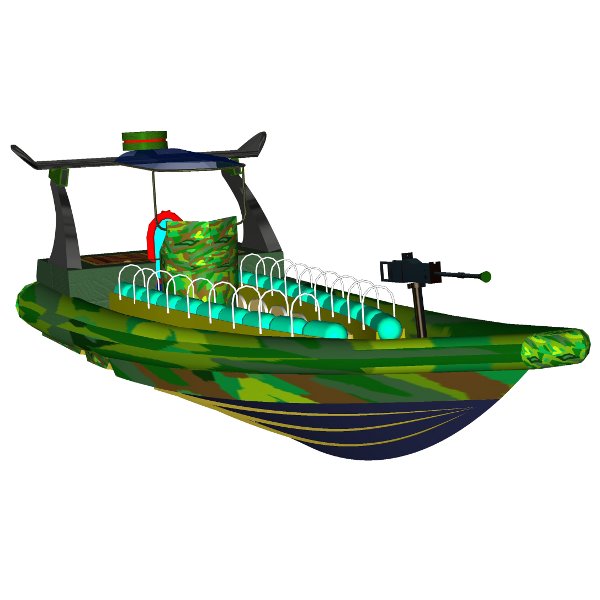

Inflatable 38’ Combat

Remarks: The entire project shall be executed in sandwich (Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.11,27   Max speed 45 Knots   Beam o.a. mt. 3,37
Load carry n.19 people   Light Displ. Kg. 3600   Range at 45 knots 320 miles
Engines 2 x 300 hp   Fuel capacity Lt. 2 x 400   Drives In board Diesel
Static draught mt. 0,80   Material Kevlar   Design boatyard

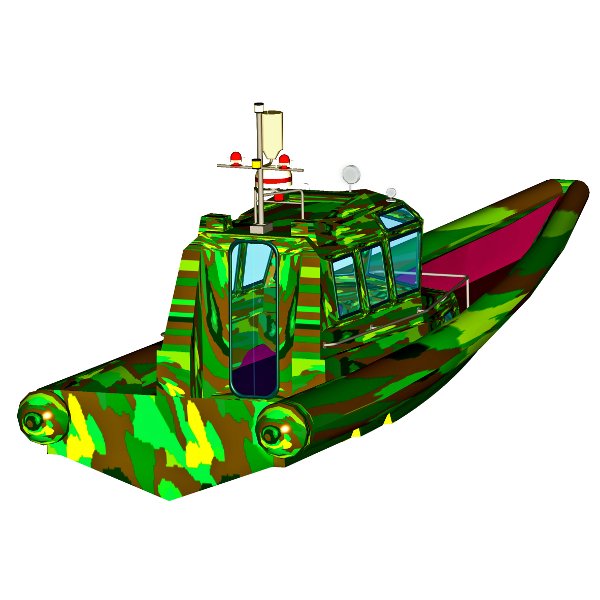

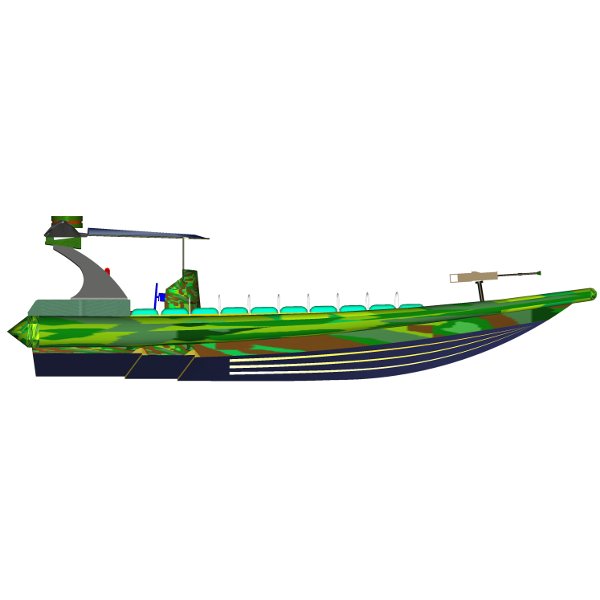

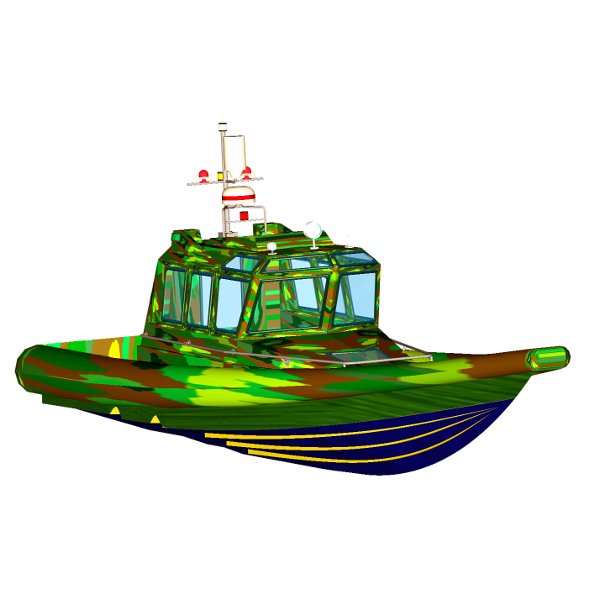

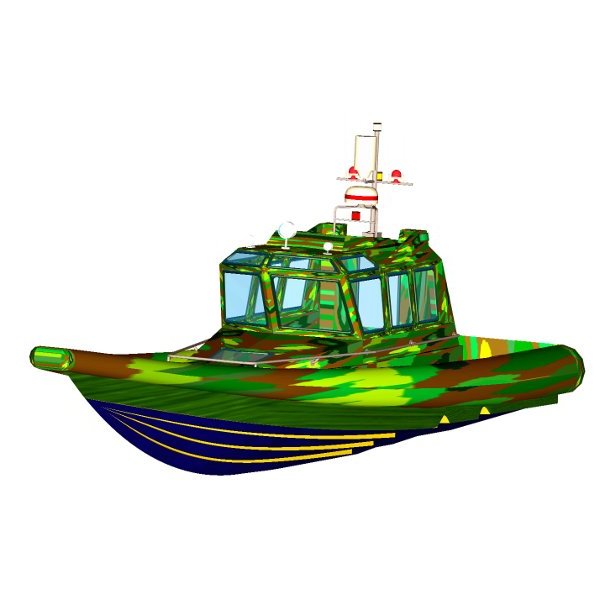

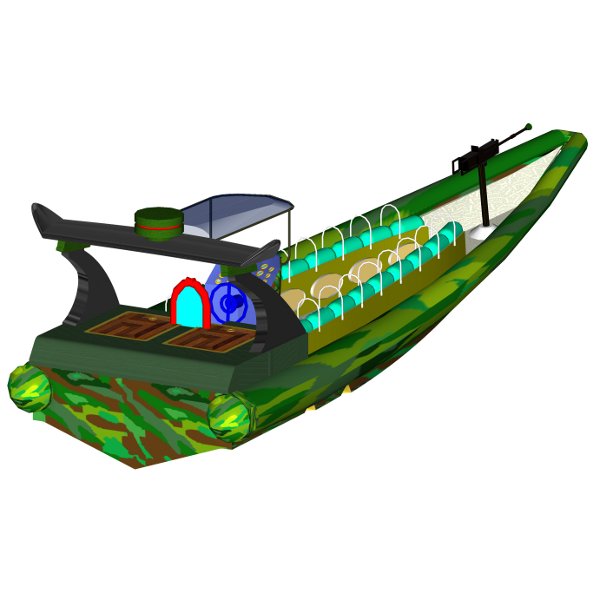

Inflatable 38” Patrol

Evolution of the species
Born from the collaboration between ComForSbarc(Navy special team) and Cantieri Navali Brindisi Design as a prototype.This inflatable can be equipped with two engines.Its excellent buoyancy, obtained by the 8 separated sections of the inflatable collar,guarantees safety at every speed.The propulsion of this boat can be stern drive or surface drive,last system is now universally recognised as the most efficient,functional and reliable drive. The inflatable represent the new frontier for high performance military boats.

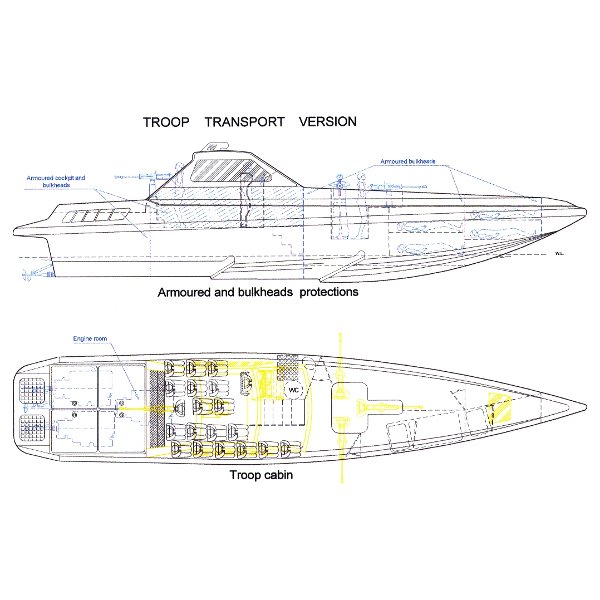

With the ComForSbarc collaboration Inflatable 38’ was born to troop transport and quickly landing.

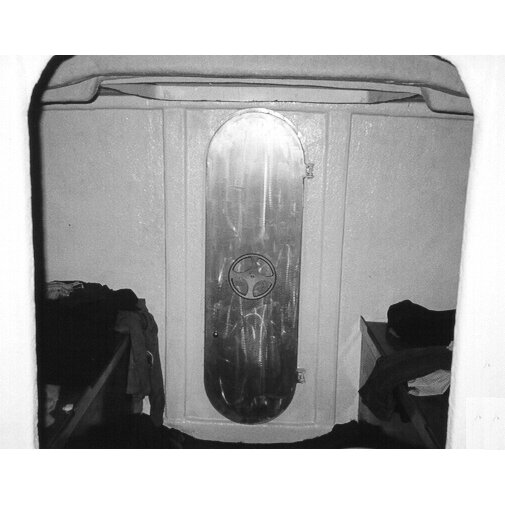

There are three separate waterproof compartments plus a special one for the ancor.

Remarks: The entire project shall be executed in Sanwich type(Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.11,27   Beam w.l mt. 2,76   Beam o.a. mt. 3,37
Load carry n.30 people   Light Displ. Kg. 3600   Range at 35/40 knots 350 miles
Engines 2 x 420 hp   Fuel capacity Lt. 2 x 350   Drives Surface drive
Static draught mt. 0,80   Material PRFV   Design C.N.B.
Arm. bukhead Kevlar   Max speed 63 Knots

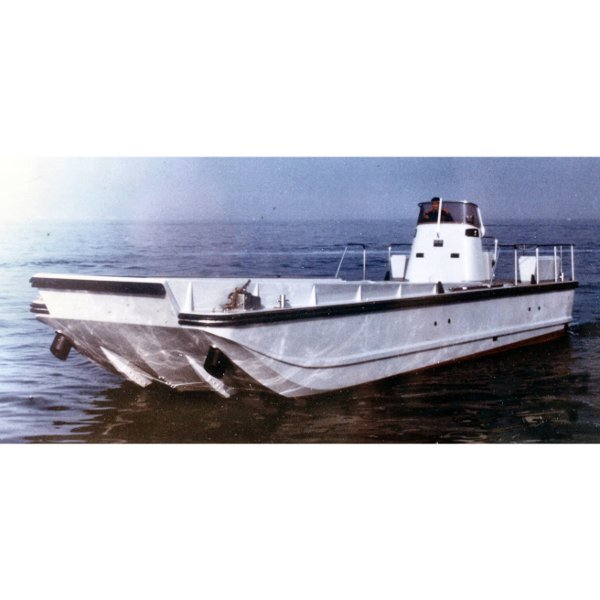

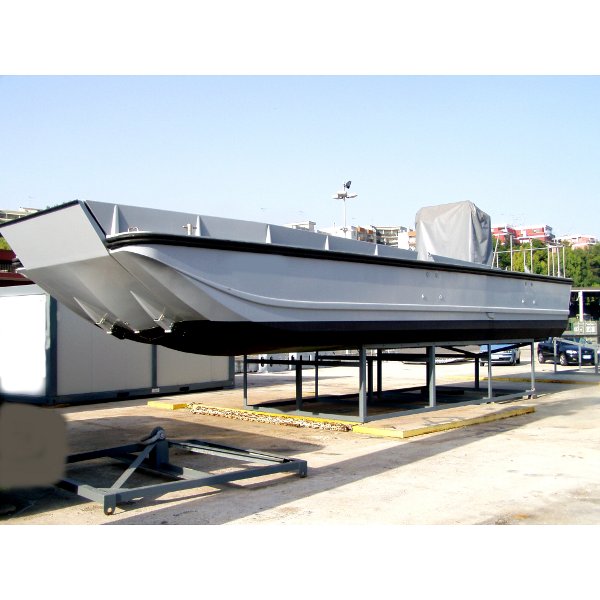

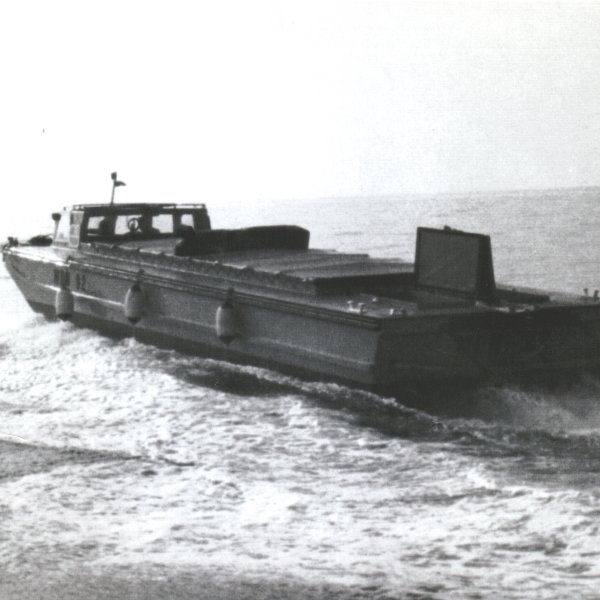

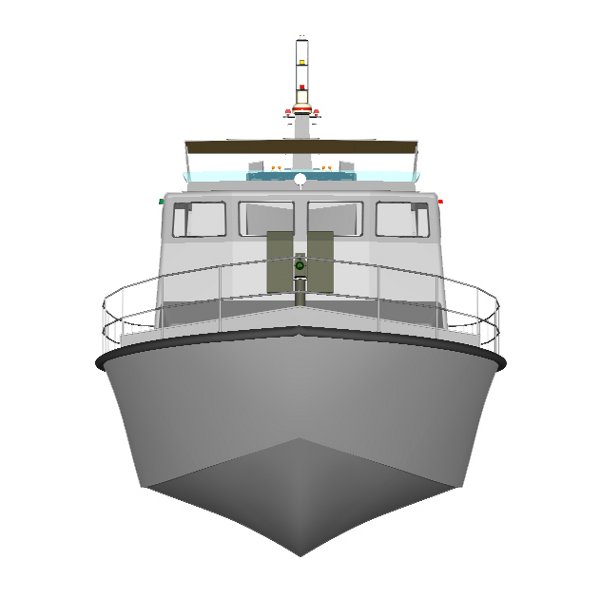

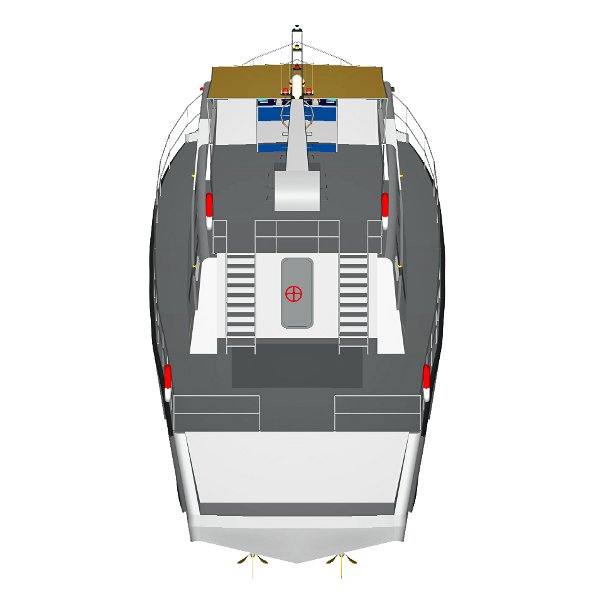

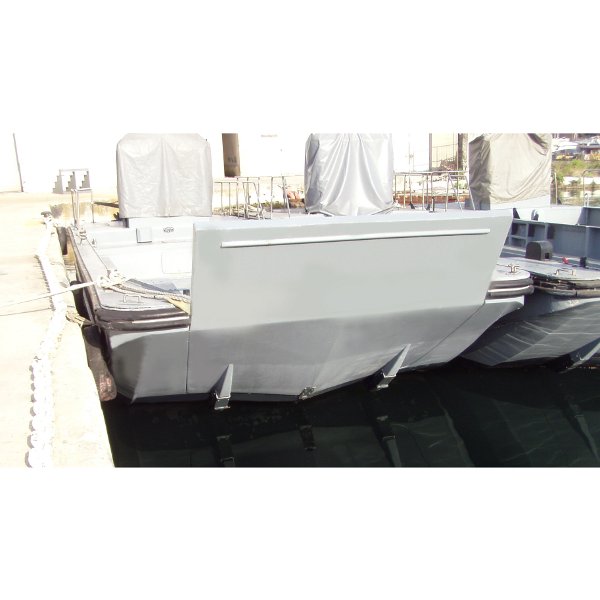

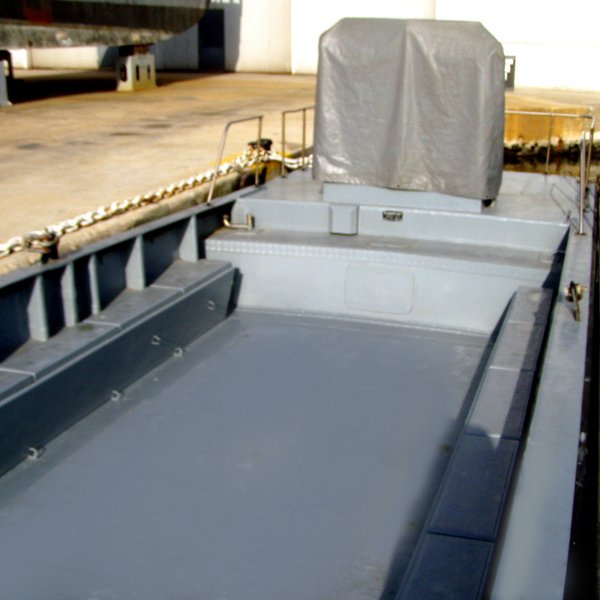

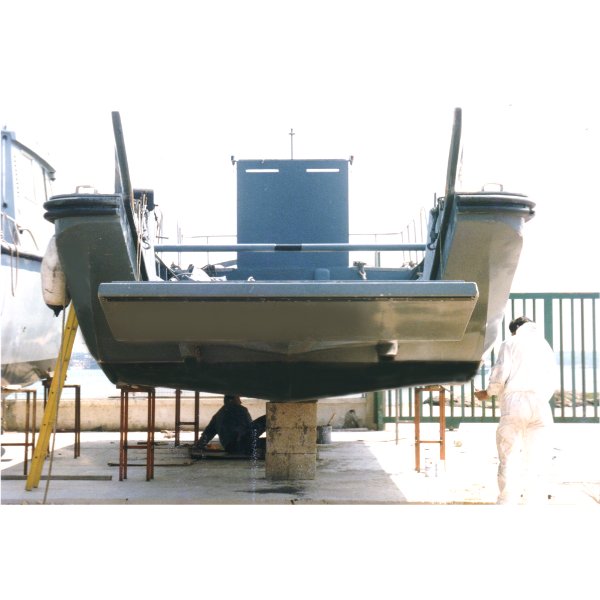

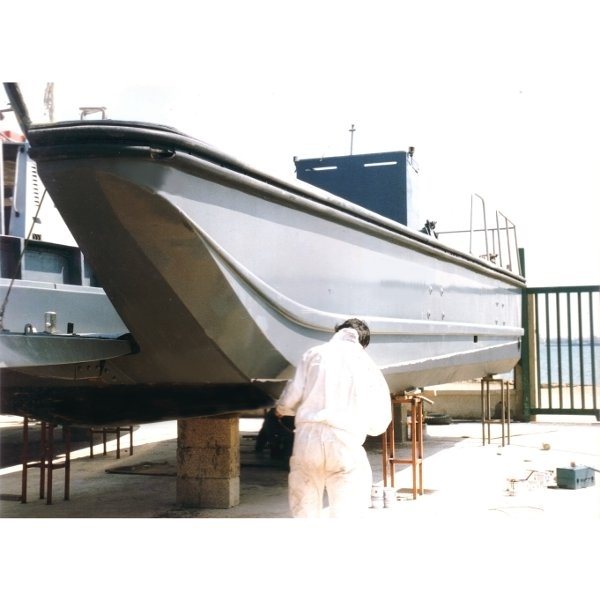

Landing 40”

Born from the collaboration between ComForSbarc(Navy special team) and Cantieri Navali Brindisi Design as a prototype.This landing boat can be equipped with one/two engines.Its excellent buoyancy, obtained by the 4 separated sections ,guarantees safety at every speed.The propulsion of this boat can be out board ,a system is now universally recognised as the most efficient,functional and reliable drive. This boat represent the new frontier for high performance military boats.
With the ComForSbarc collaboration Landing 40’ was born to troop transport and quickly landing.
There are four separate waterproof compartments .

Remarks: The entire project shall be executed in Sanwich type(Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.12,00   Max speed 28 Knots   Beam o.a. mt. 3,20
Load carry kg 5000   Light Displ. Kg. 5200   Range at 28 knots 150 n.m.
Engines 2 x 400 hp   Fuel capacity Lt. 2 x 400   Drives Surfice drives
Static draught mt. 0,45   Material fiberglass   Design boatyard

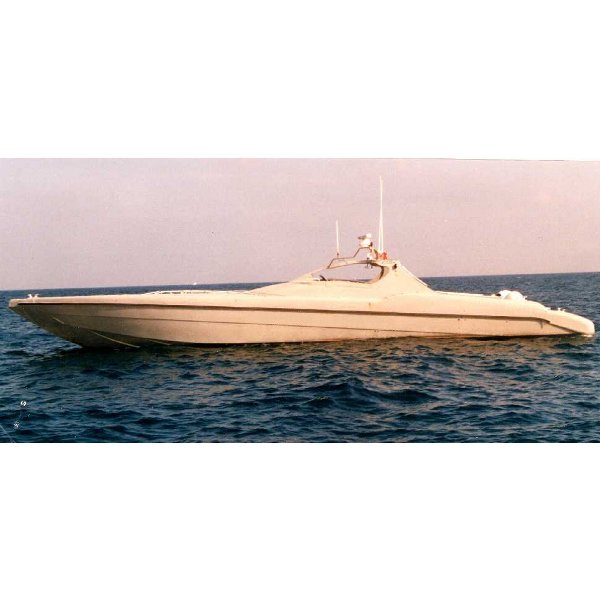

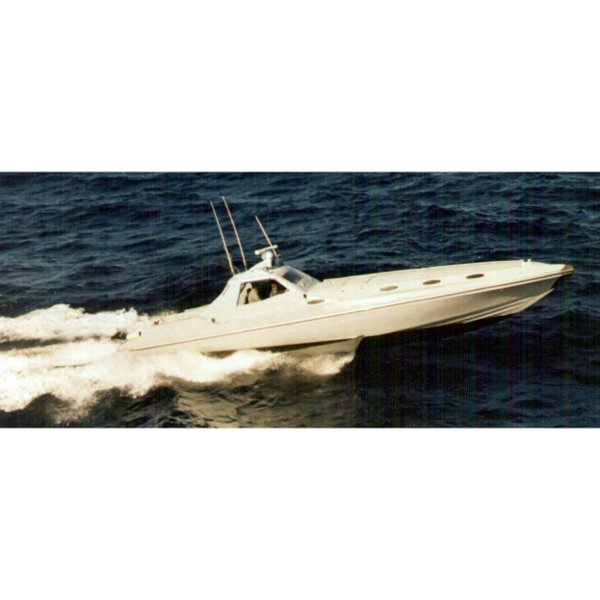

Adrenalina 50”

Remarks: The entire project shall be executed in Sanwich type (Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.15,78   Lenght w.l. mt.12,32
Beam o.a. mt. 3,05   Beam w.l. mt. 2,63   Dead rise 25°
Gearbox ZF 110 GTS   Displacement Kg. 8000   Range at 55 knots nm 400
Engines 4 x 420 Hp
3 x 750 Hp		   Fuel capacity Lt. 3300   Drives Stern Drive
Jolly Drive
Fresh water capacity Lt. 250   Max Speed Full 51 kn   Max Speed Light 55 kn
Static draught mt. 0,95   Material fiberglass   Design boatyard

Adrenalina 63”

Remarks: The entire project shall be executed in Sanwich type (Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.18,64   Lenght w.l. mt.14,43
Beam o.a. mt. 3,54   Beam w.l. mt. 3,23   Dead rise 23°
Gearbox ZF 110 GTS   Displacement Kg. 14200   Range at 61 knots nm 585
Engines 4 x 680 Hp
4 x 750 Hp		   Fuel capacity Lt. 5000   Drives Trimax
Jolly Drive
Fresh water capacity Lt. 200   Max Speed Full 56 kn   Max Speed Light 61 kn
Static draught mt. 1,28   Material fiberglass   Design boatyard

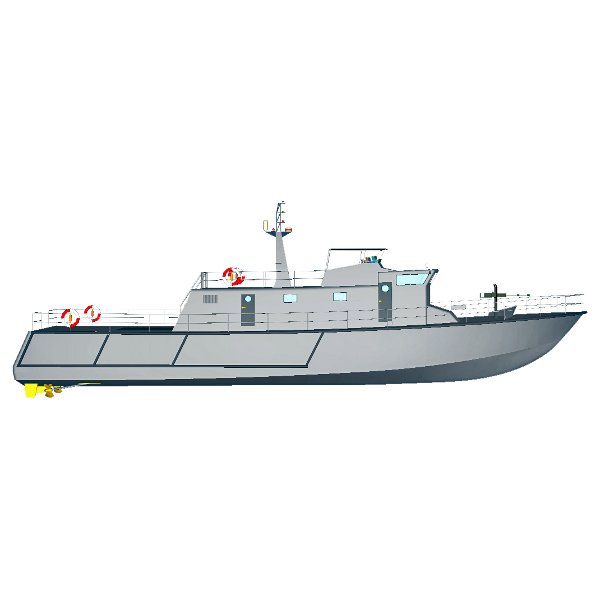

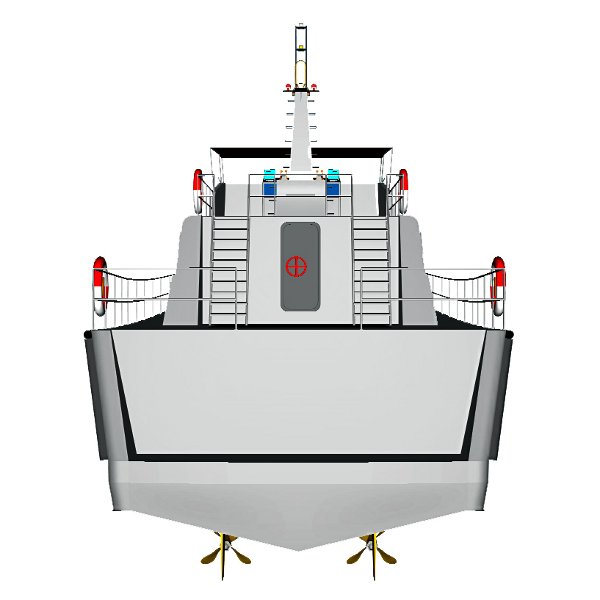

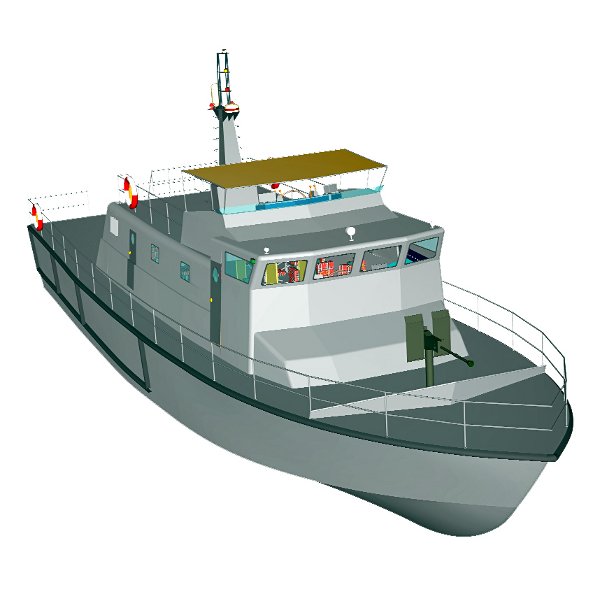

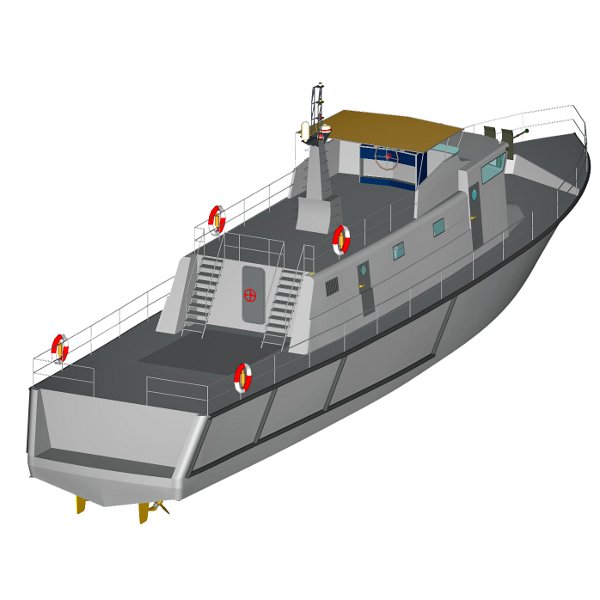

Interceptor 100”

Remarks: The entire project shall be executed in Sanwich type (Vacuum Tecnology)with advanced fiberglass compound .

Lenght o.a. mt.30,00   Lenght w.l. mt.26,53
Beam o.a. mt. 7,03   Beam w.l. mt. 6,17   Dead rise 16°
Gearbox ZF   Displacement Kg. 70000   Range at 38 knots nm 800
Engines 2 x 2400 Hp   Fuel capacity Lt. 20000   Drives Four blades Propeller
Fresh water capacity Lt. 1000   Max Speed Full 35 kn   Max Speed Light 38 kn
Under rudder Static draught mt. 1,45   Building boatyard   Design boatyard
